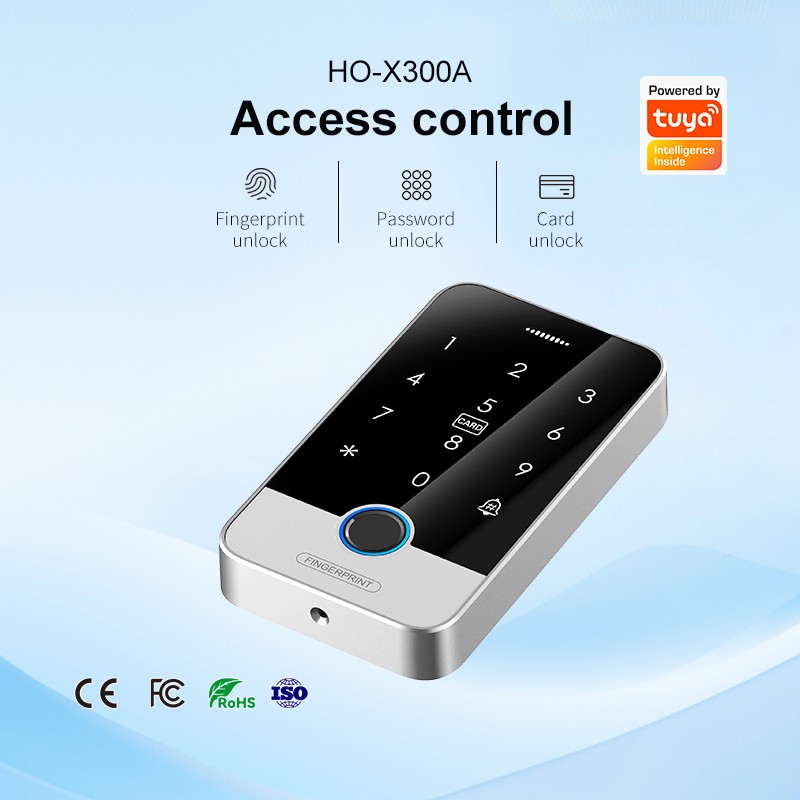

Product Overview

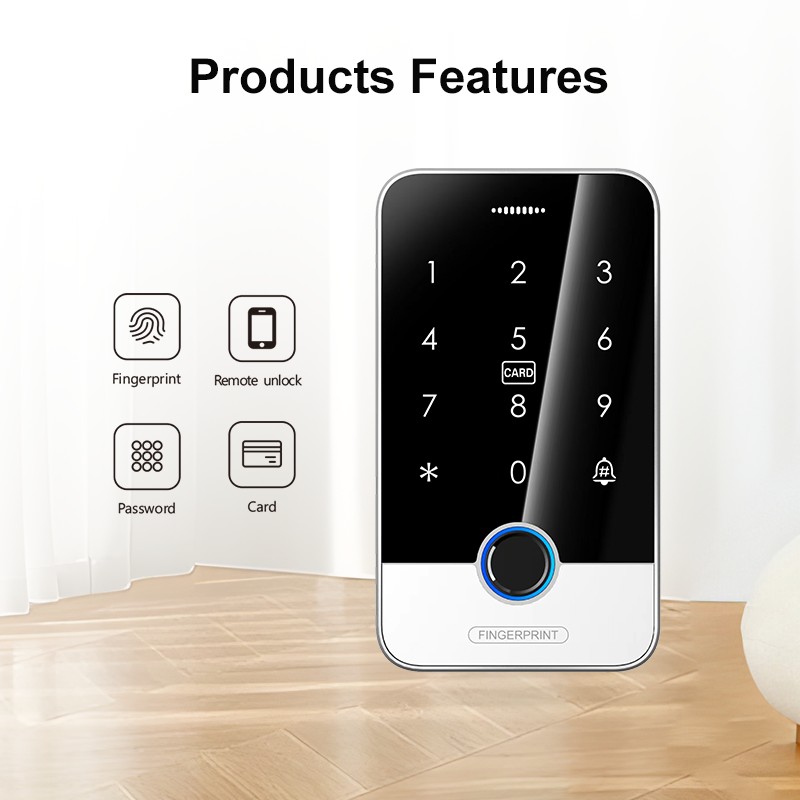

Product Features

• Independent wall-mounted access reader, controls external electric strikes and magnetic locks via relay output
• Large user capacity: 300 fingerprints, 2300 PINs, 2300 cards for enterprise-level access management
• DC12V power input compatible with mainstream access control power adapters

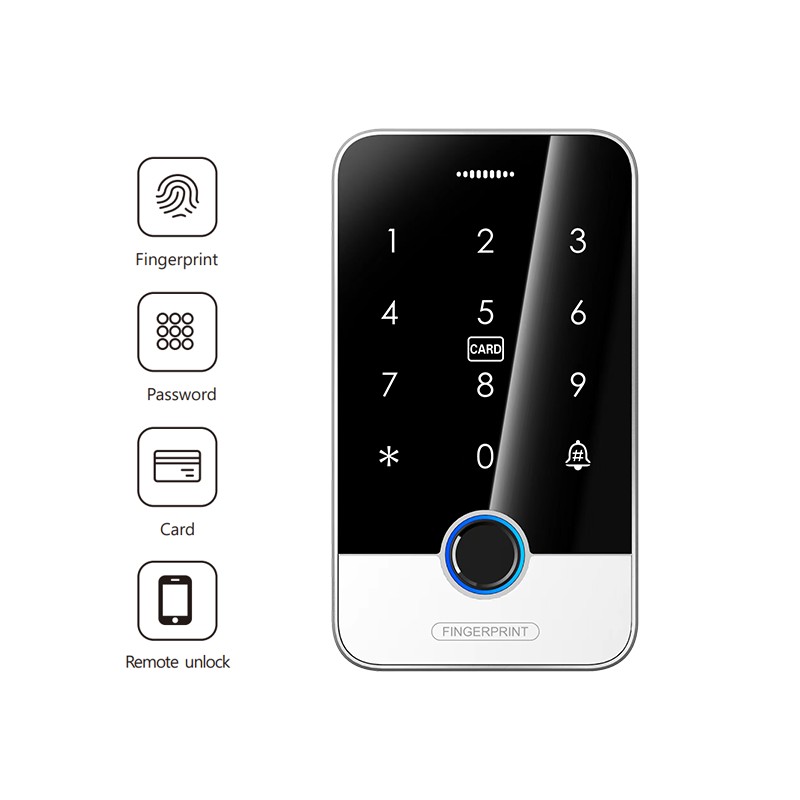

• Three verification modes: Fingerprint, PIN, RFID card
• BLE Tuya app for remote user enrollment and management without dedicated PC software

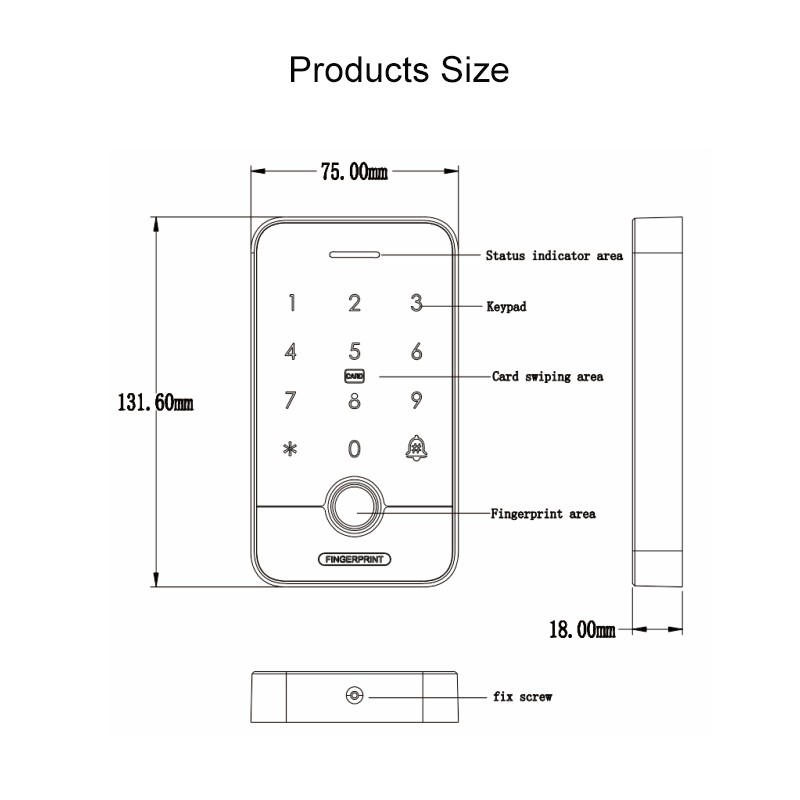

• ABS plastic body, compact 131.6×75mm size for single-gang box installation
• Chinese and bilingual voice & screen prompts
• Operating temperature range: -20°C to +50°C

  Use Cases

  Office Main Entrances: Wall reader controlling glass door electric strikes, supporting mass employee ID card management.



  Residential Compound Gates: Tap resident cards to open boom gates, send temporary PINs to delivery personnel via mobile app.



  Factory Turnstiles: Fingerprint storage for permanent staff, PIN and card access for contractors and shift workers.



  Data Center Server Rooms: Dual fingerprint + PIN verification with complete access log records for compliance audits.



  Shared Office Multiple Rooms: Deploy one reader per room, central access management via Tuya app.

  How to Install

  1. Confirm DC12V wiring is reserved at the installation position.
  2. Connect positive and negative power cables to corresponding terminals.
  3. Wire relay NO/COM or NC/COM terminals to electric strike or magnetic lock.
  4. Optional wiring for exit button and door status sensor.
  5. Fix the reader on wall with single-gang box adapter.
  6. Power on and activate BLE pairing for Tuya app.
  7. Register administrator fingerprint and PIN, add users one by one or import in bulk via Tuya web dashboard.

  Certifications & Warranty

  CE, FCC, RoHS certified. Passed 100,000 relay switching cycles, ABS salt spray test, wide temperature test and 8kV ESD air discharge test. 2-year general warranty; 3-year extra warranty for relay modules.

  Ordering Information

  • MOQ: 60 pcs per carton
  • Sample: Paid single unit, cost refundable for orders over 200 pcs
  • Payment Terms: 30/70 T/T, L/C acceptable
  • Lead Time: 3 days for samples, 3-4 weeks for mass production
  • OEM Packaging: Minimum 500 pcs
  • OEM Logo: Minimum 500 pcs
  • Matching Packages: Optional bundled electric strike, 280kg magnetic lock, 12V power supply and installation cables
  • Integrator Discount: Tiered pricing for orders over 500 pcs for system integrators
  • Contact: Get access control system quote → https://www.diyusmart.com/contact/
